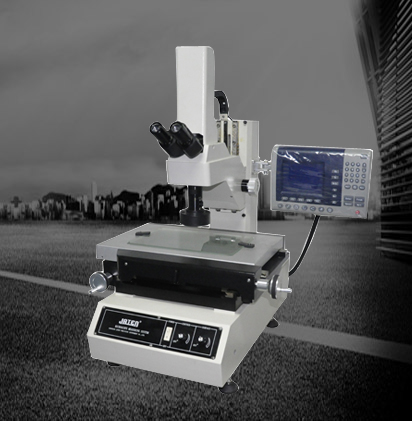

WMS-1860

Model Number: VMS-1860

Objective magnification: Visual system:1x (standard) 2x(Optional)

Eyepiece magnification: Visual system: 10X (Optional)

Total magnification: Visual system:10X~50X

Image resolution: 640*480

Table size: 354x228mm

Machine size : 530x530x795mm

Table travel: X=150 Y=100 Z=150 (Focusing)

X.Y.Z Digital resolution: 0.0005mm

X, Y coordinates of the indication error:(3+L/50)μm

Transmission lighting: Focusing hand wheel adjustable elastic, lifting range 60mm

Lighting: 24V/20W Tungsten halogen lamps

Reflective lighting: 12V LED Ring light and reflected illumination with laser point

FEATURES

VMS-1860 is a set of software tools, microscopes, optical, mechanical and electrical integration of high precision and high efficiency of microscopic measurement instruments .Novel appearance, simple and efficient .

VMS-1860 microscope with a variety of data measurement, micro zoom, display input and output data processing functions.

Ultra-fine digital color CCD camera device(Interface with C-MOUNT ).Can input and output measurements, data and access images. It can meet different user srequirements.

Quick Measuring dedicated graphics window can measure the operating software for automatic boundary. No need programming. Just a mouse click when you want to measure. Easy operation.

imaging systems :domestic licensing CCD or American TEO .

measurement software： Quick Measuring (Optional)

PRODUCT ADVANTAGES WMS-1860

1. For the vertical measurement of the size of the projector is difficult to detect, it is difficult to observe the site, can effectively complement the measurement and observation.

2. stable performance

3. high precision

4. simple operation

5. easy maintenance

6. Simple structure, strong bearing capacity, the workpiece placed open space, handling convenience.

Product Applications

The perfect vision system for non-contact measurement and further inspection of Stamped and injected parts,Plastic parts, injection moulds,Electronic and other components commonly used in silk screen printing as well as the lead industry among others。

Packing ,transportation and after sales service

1. One years warranty for the mother board.

2. Life-long maintenance service for the product.

Packing : wooden case.

Delivery time : 2 working days after receive the payment.
